Quality Tracks

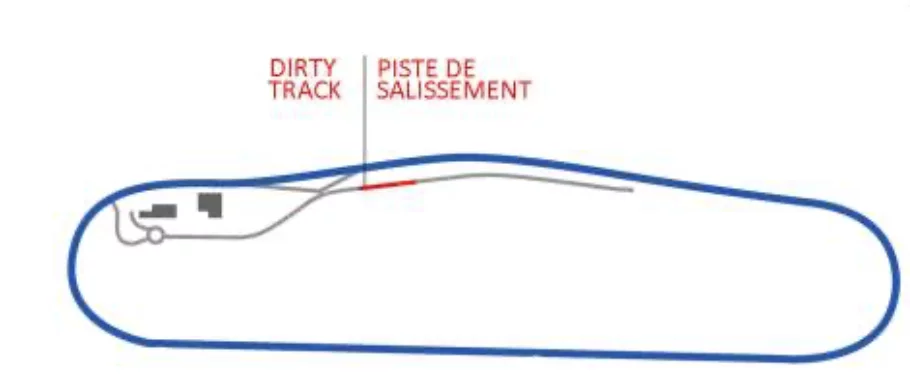

Dirty track
- Lenght: 800m
- Operationnal lenght : 100m
- Water ingress with adjustable height up to 50cm.

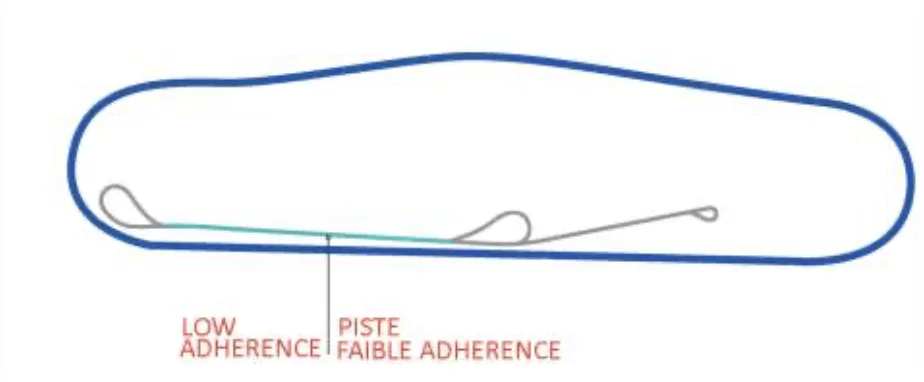

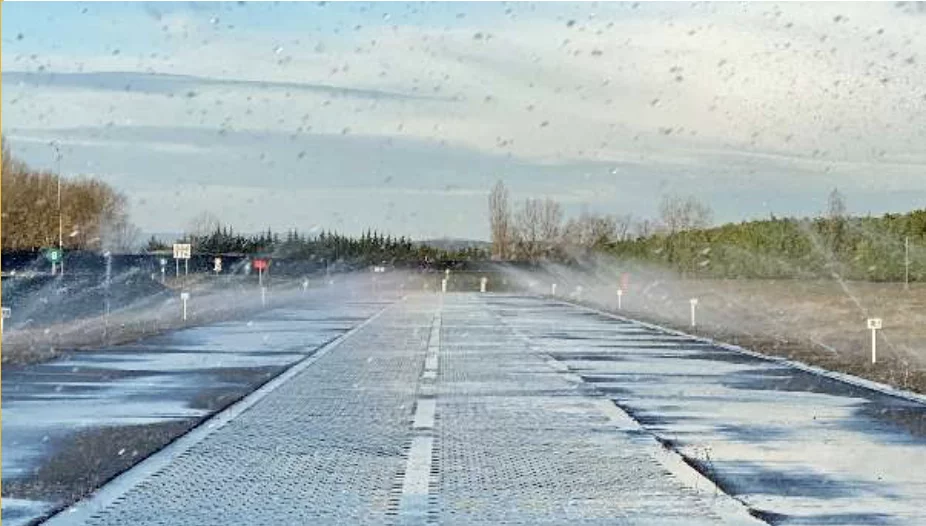

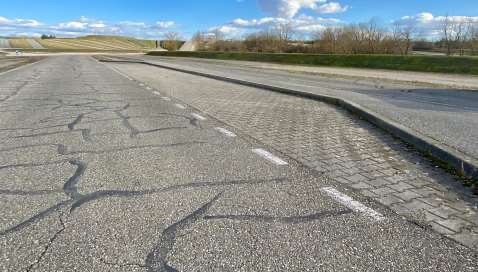

Low Adherence
- "Basalte" cobblestones on 4m of width
- Lenght of low adherence: 200m
- Asphalt high-adherence path
- Continuous watering or in turns
- Development and measurement:
- high-grip braking

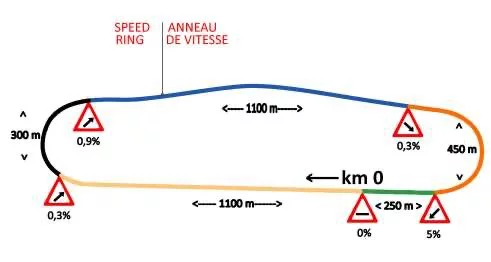

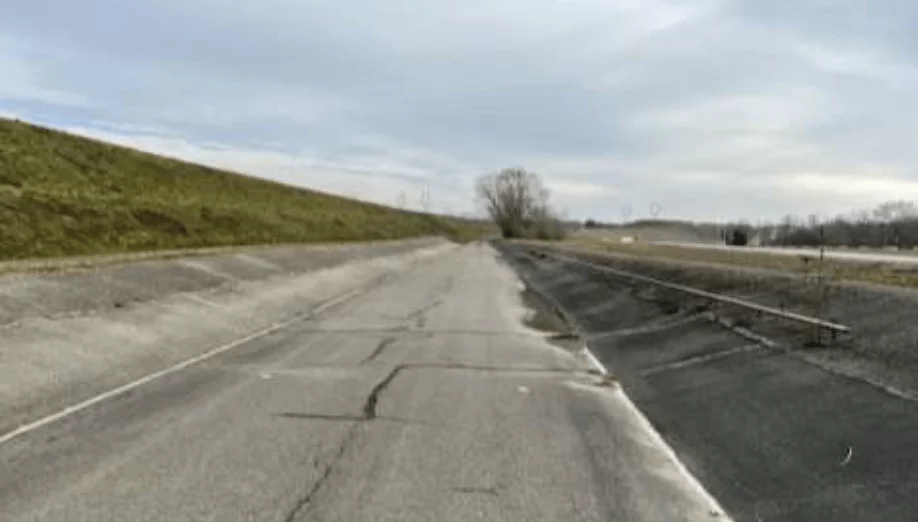

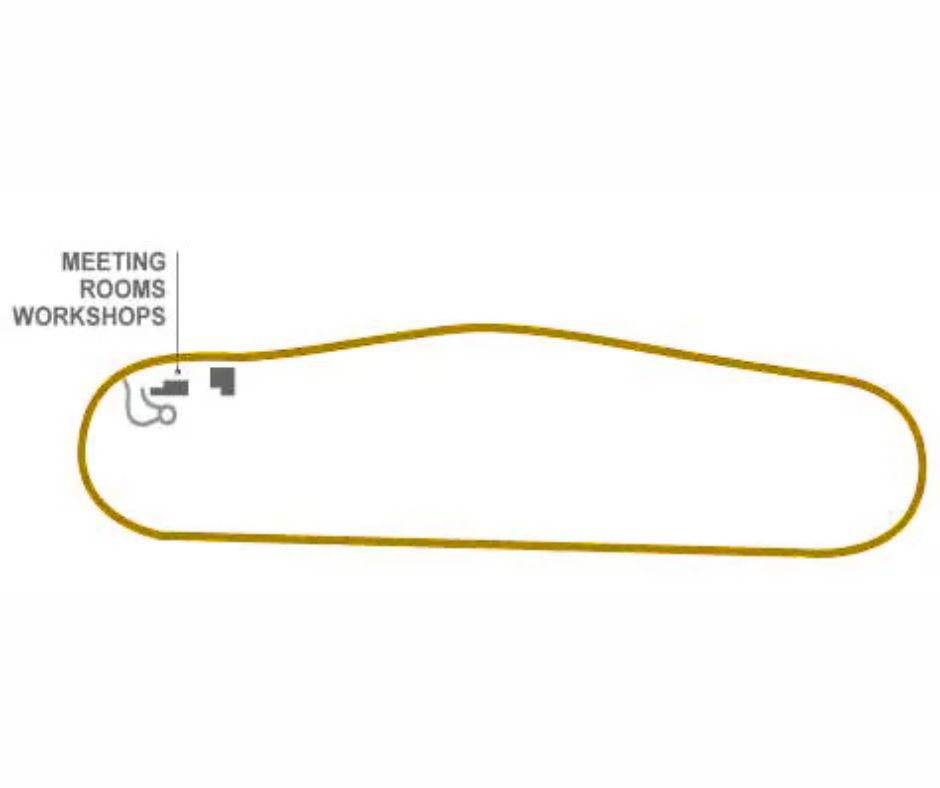

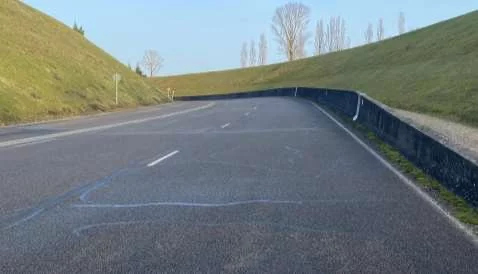

Speed Ring
- Lenght: 3250m with 3 straight lanes of 1000m
- Banked curves (30% top lanes)
-
Speed ring for: -
high-grip braking -
vehicle dynamics
- ADAS
- Acoustics, Measurement of internal noise

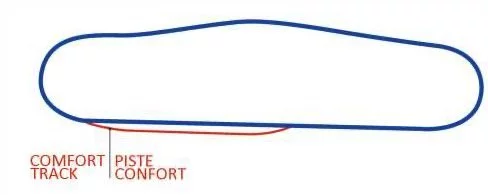

Comfort Track
- Lenght: 700m
- Speed: 80kph
- With isolated obstacles: manhole cover, railway line, road collapse, bumper...

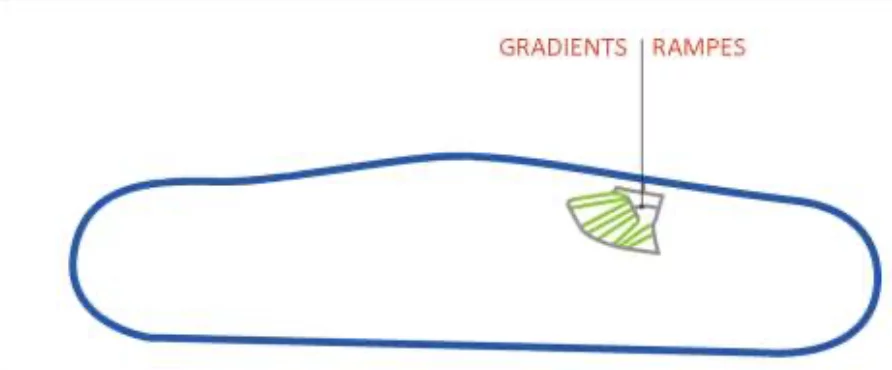

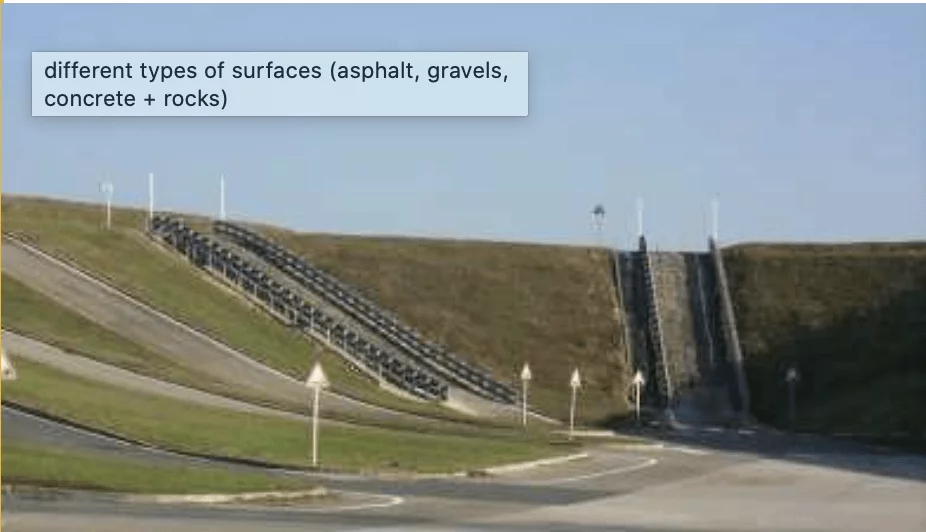

Gradients
- Ramps from 8% to 50%
- Different types of surfaces (asphalt, gravels, concrete, rocks)
- Assessment of clearance, strength of parking brakes.

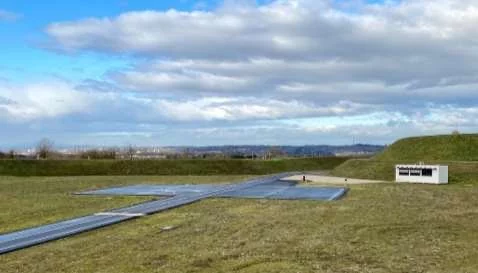

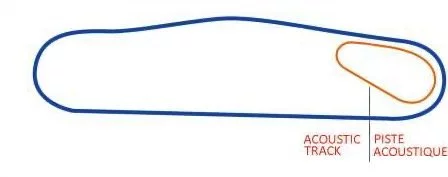

Acoustic Track
- Development, measurement and homologation of external noise according to ISO10844 :2014 standard.
- Lenght of the ring: 895m
- ISO lenght: 70m
- Predisposition of underground measuring cable

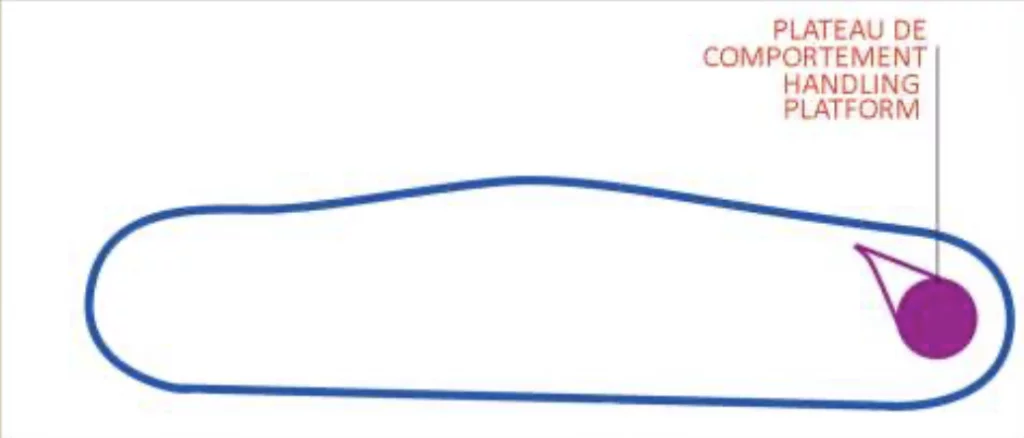

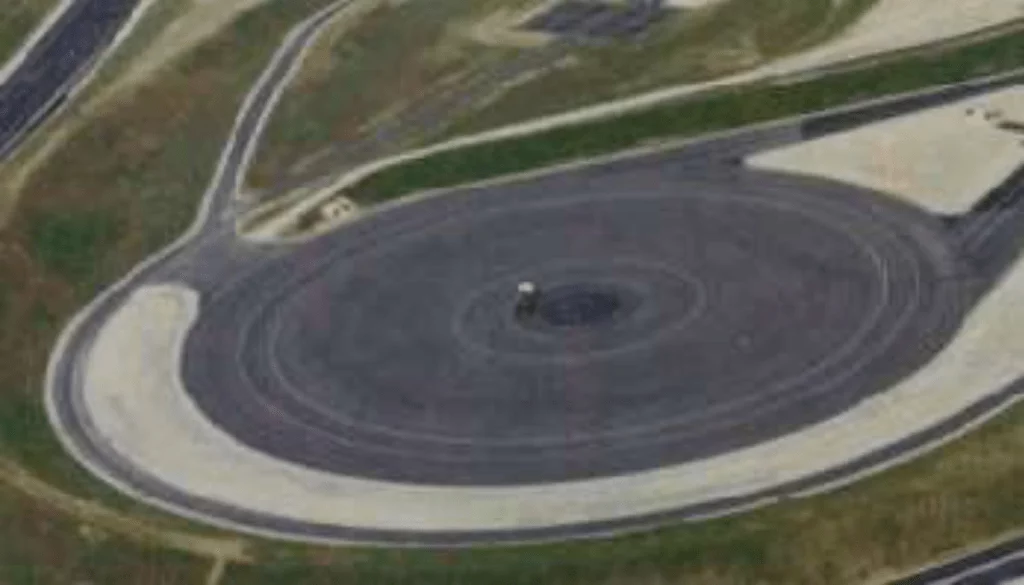

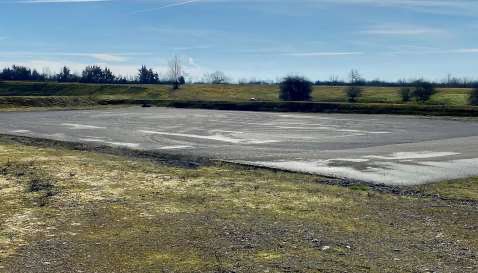

Handling Platform
- Several radius markings
- 1% inclination towards the centre
- Development and measurement of driving behavior
-
Development, measurement and approval:
Steering system
Electronic Stability Control
Durability Tracks

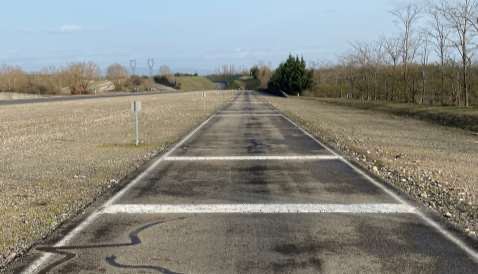

Concrete Bumps
- Twice 4 concrete bumps, spaced of 20m
- Height of bumps : 67mm
- Crossing speed: 35kph
Potholes
-
Track lenght:
North: 100m - South: 300m - Dimension: 0,7 to 1,4m
- Depth: 6 to 10cm
- Crossing speed: 25kph

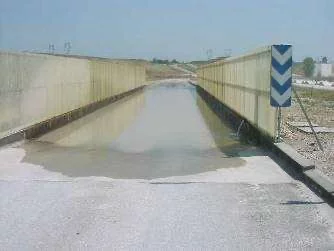

Cooling Ford
- Length: 30m
- Adjustable depth: 6, 8 and 10cm
- Crossing speed: 30kph

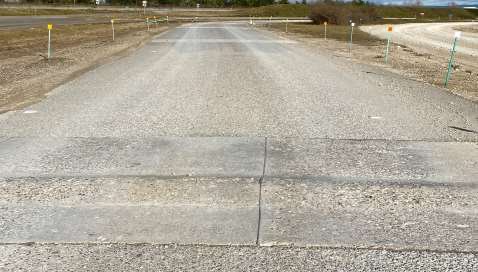

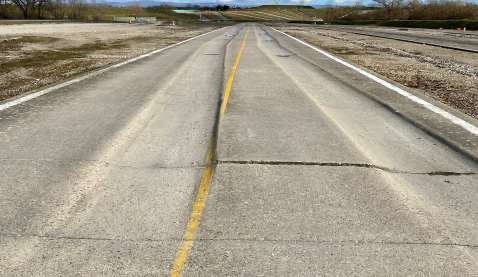

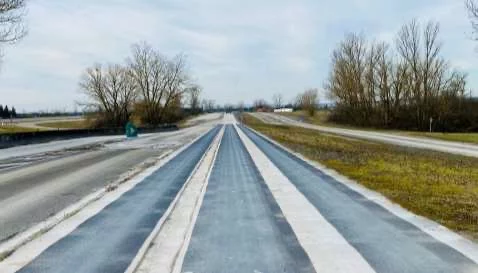

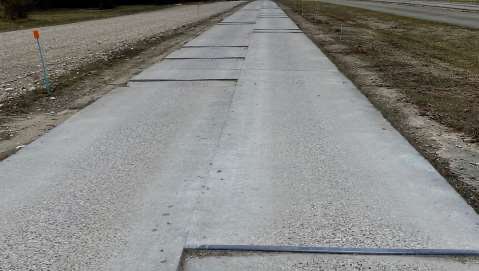

Concrete Channels
- Symmetrical and asymmetrical scarification
- Symmetrical and 3 depth zones: 20 to 40mmscarification
- Crossing speed: 25 to 40kph

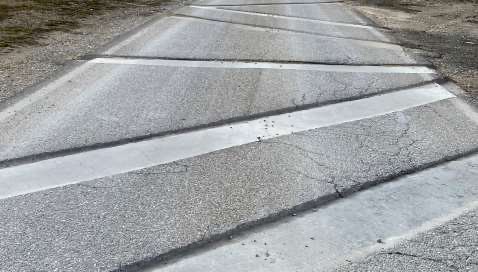

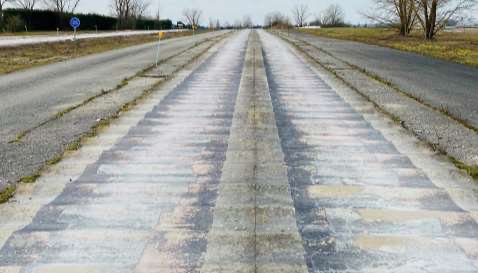

Washboard in Phase & Out of Phase
- Lenght: 140m
- 3 lanes, phase and phase shift
- Height: 2cm
- Frequency: 5 to 25Hz to 36kph
Manhole Covers
- 6 manhole covers
- Height of 17mm
- Crossing speed: 25kph
African Washboard
- Lenght: 300m
- Height: 6cm
- Frequency: 25 to 45Hz to 65kp

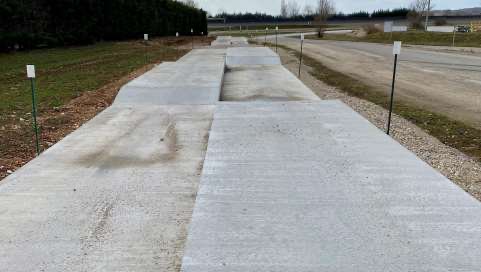

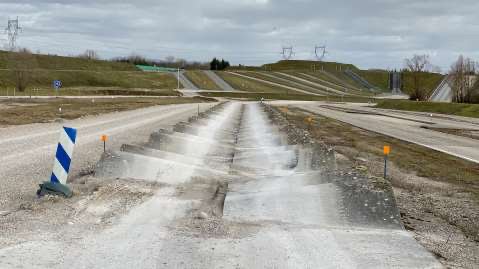

Rough Twister Blocks
- 2 lenght of 100m
- Intervals of 7m
- Difference in height of blocks: 0,3m
- Crossing speed: 2 to 5kph
- Assessment of chassis torsion
Smooth Twister Blocks
- 2 length of 30m
- Intervals of 8,5m
- Difference in height of blocks: 0,2m
- Crossing speed: 2 to 5kph
- Assessment of chassis torsion
Rut Track
- Lenght: 200m
- Assessment of tyres behaviour

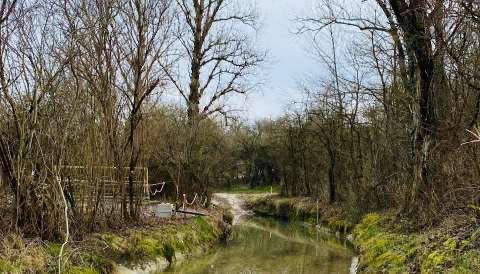

Muddy Ford
- Lenght: 1,9km
- Speed: 40 to 50kph
- Crossing assessment

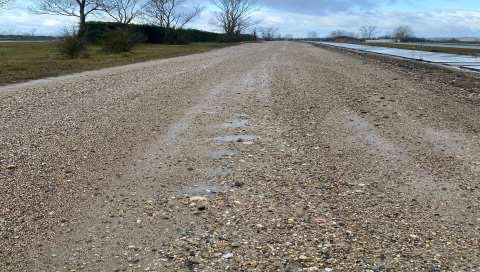

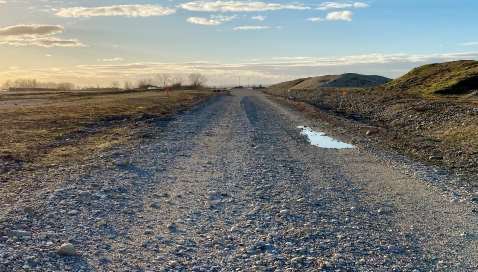

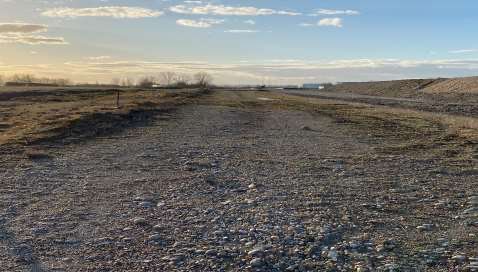

Gravel Track
- Lenght: 1,9km
- Speed: 40 to 50kph

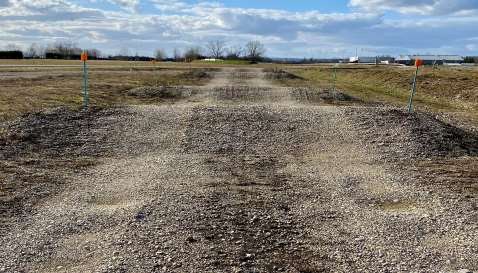

Gravel Bumps
- Length: 70m
Loose Soil
- Length: 90m
Gravel Reverse Track
- Length: 140m
Right and Left Slope
- Length: 70m
Asphalt Steering Area
- Surface area: 1500m2 (50m x 30m)
- Development of steering system

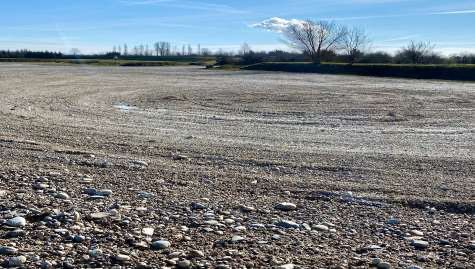

Gravel Steering Area
- Surface area: 1500m2 (50m x 30m)
- Development of steering system

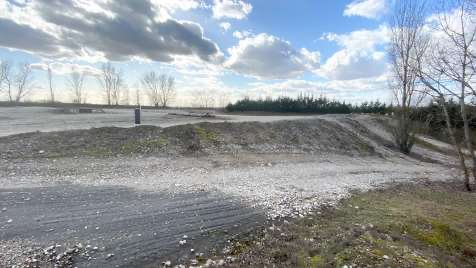

Evolution Area
- Offroad evolution area
- Surface area: 10 000m2
- Gravel, ramps and various impediments.
- Crossing assessment
- Mobility
Diverse Obstacles
Steps
- 2 heights of step: 400 and 500mm

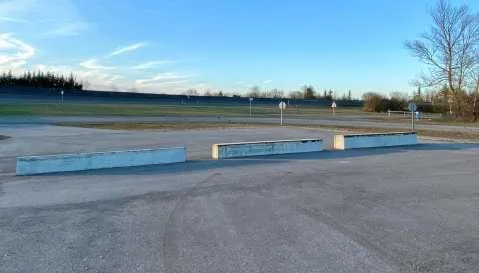

Wall
-
3 dimensions (Lenght x width x height): -
4m x 20cm x 40cm
4m x 40cm x 40cm
4m x 50cm x 50cm
Standard bus stop
- Standardised bus stop. Lenght: 35m
- Standardised sidewalk
Urban Bump 1
-
Lenght: 0,64m
Height: 67mm
Urban Bump 2
-
Lenght: 4,5m
Height: 100mm

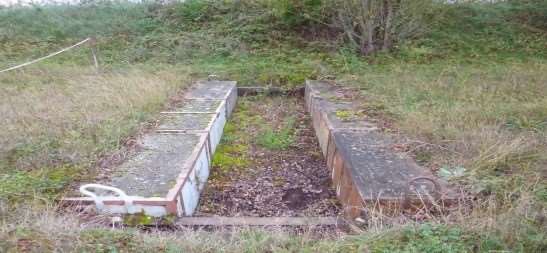

Pits
-
3 pits
Height: 60cm
3 leight: 110, 130 and 150cm
Proving ground
Infrastructures
Electric Recharging Station
- Charging station Heliox Fast DC150 - 150kw with CCS plug
Meeting Rooms
- Meeting rooms up to 30 people Equipped: video projector, wifi, soundstation...
Customer Space
- Confidential workshop with mechanical pit
- 1 power point Hypra IP66 TETRA 3P+N+T, 125A with meter.
- Air-conditioned rest house
- WiFi
Weighting Area
- CAPTELS ORA10 MVN 2A8V 314 scale 8 mass measurement platforms From 0 to 20 000kg, 5kg steps
Gravel Loading Hopper
- Automatic system to load/unload construction vehicle with gravel (Imitating customers conditions of use)
High Pressure Carwash
- High pressure cleaning tunnel and area. For endurance testing, cleaning vehicle before mechanic control
Handling and Ballast
- Hoist of 5000 daN
- Forklift truck for 3770kg
- Concrete ballasts
- Sandbag of 5, 10, 15kg
- Sandbag of 5, 10, 15kg
- Gravel
