KSA crash lab Outdoor launchpad system

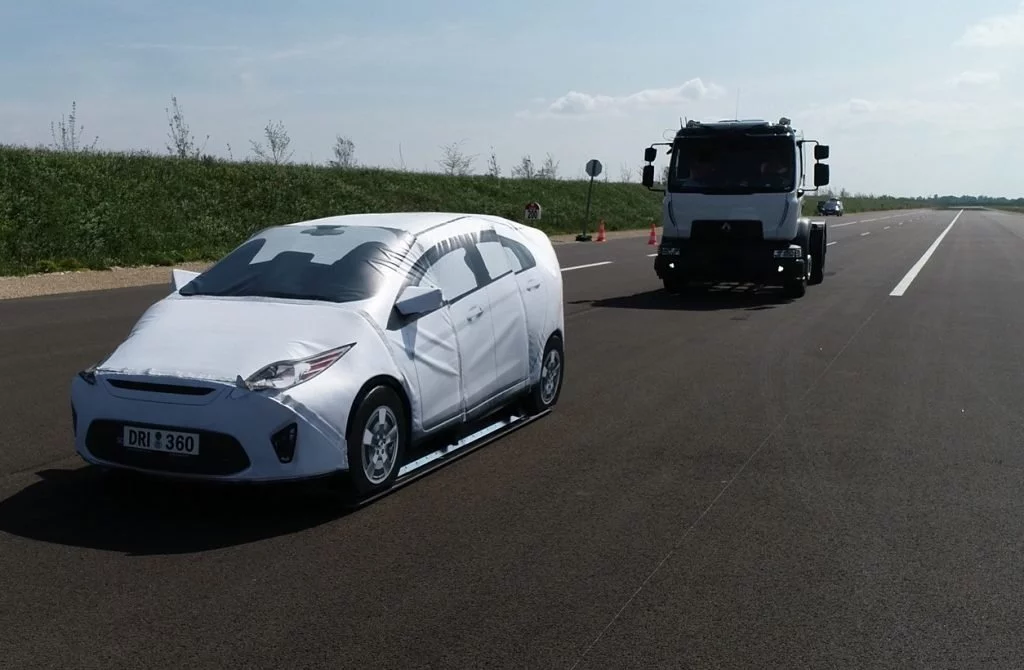

Ksa crash lab Highway
- ADAS sensor area
- 1000 meters long
- 5 lanes (can be widened to 9 lanes)
- All lane markings comply with the Euro NCAP test protocol for Lane Support Systems
- Road markings: modularity, can be country-tailored, selection of colors, cross-sectional camber, roads…
- Facilities: signs, 5 fiber optic cabinets, rockfall embankment for safety and privacy

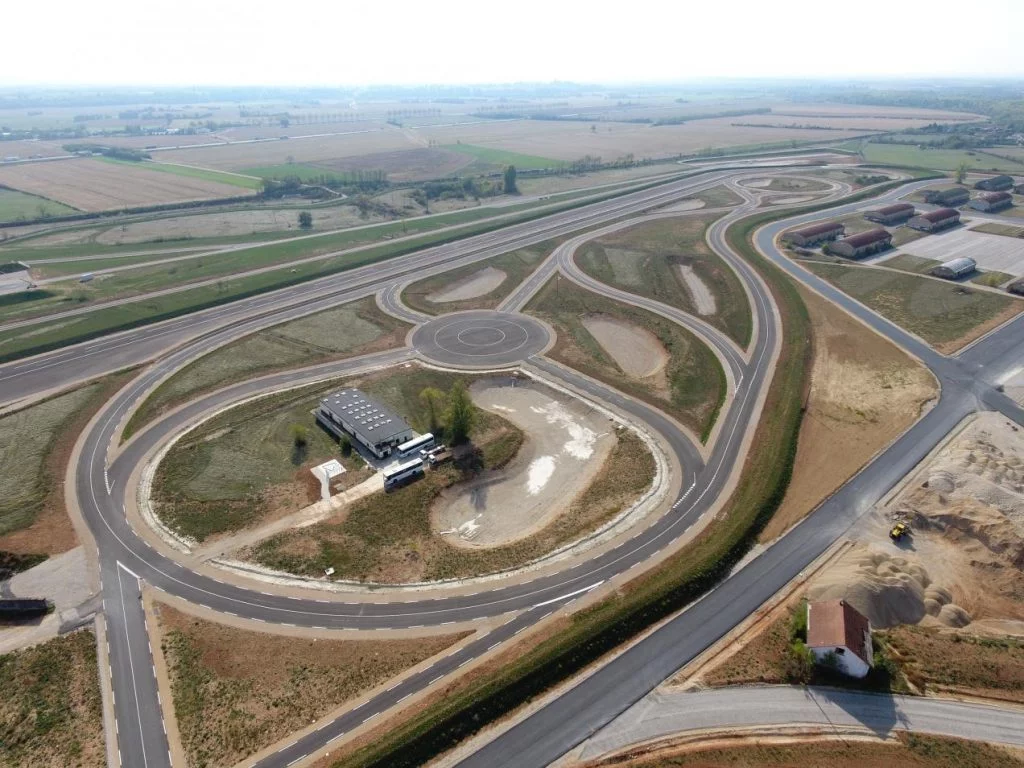

Ksa Crash kab Runways
- Driving area covering 21,819 m2
- 2.9 kilometers long – 2 lanes
- Wide curves
- 2 large traffic circles
- Handling platform
- Amircan - mash roads
- Curvature: from 30 to 157m
- 6 fiber optic cabinets

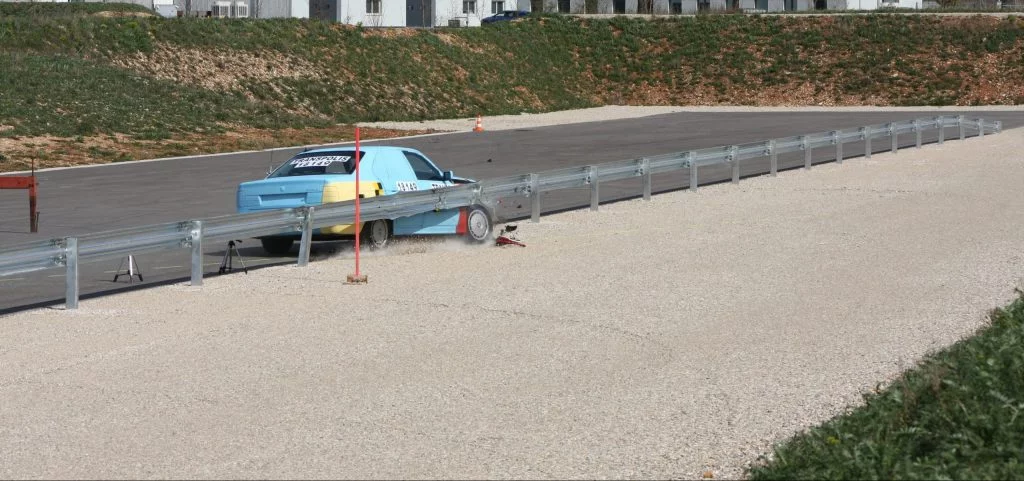

KSA crash lab Crash Test
- 3 crash test areas, each with :
- rockfall embankment for safety and privacy
- cameras, including travel cam
- drones
- cottage reserved for customers
Specific features:
- Crash Test Area 1 : EN1317 / AASHTO MASH crash tests Area length: 150m Surface: compacted gravel and asphalt
- Crash Test Area 2 : HVM / EN1317 crash tests Launch pad: 732m - Angle: frontal Surface: as required by customers.
- Crash Test Area 3 : EN1317 / AASHTO MASH crash tests Area length: 200m Surface: compacted gravel, asphalt & concrete (bridge)
